Solid End Mills

VQ2XLB_INCH
(Ball nose, Short cut length, 2 flute, Long neck)

VQ2XLBDU040N8D EDP:23985919

Product Information

  • Fracture resistance is improved by adopting a new S-shape, reinforced cutting edge geometry.
  • SMART MIRACLE coating provides better wear resistance when machining difficult-to-cut materials.

The actual product may differ from the displayed image.

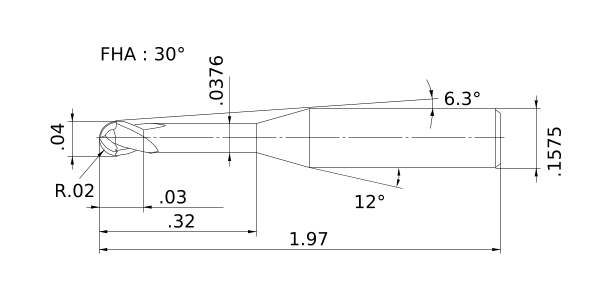

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length I
DC .04
DCONMS .1575
DN .0376
B2 6.3°
BHTA2 12°
LF 1.97
LU .32
APMX .03
FHA 30°
RE .02
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -.0002
R Tolerance + .0002
Coated VQ

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
