Spare Parts >GY05016S

Spare Parts

GY05016S EDP:502730

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Unit of Length I

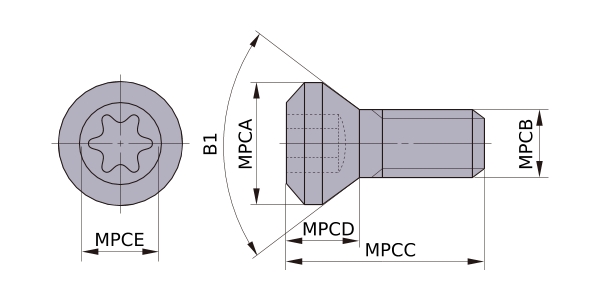

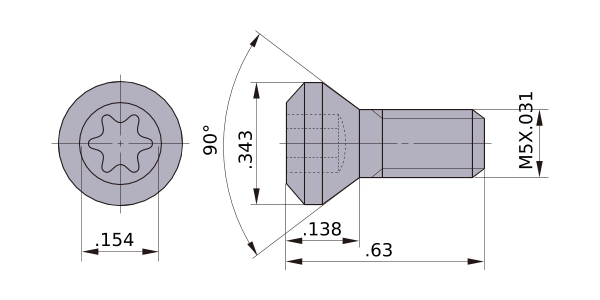

B1 90°
MPCA .343
MPCB M5x.031
MPCC .63
MPCD .138
MPCE .154
MPCDS T20
TQ 44.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
