GYAL25K90B-E06 EDP:503345

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I

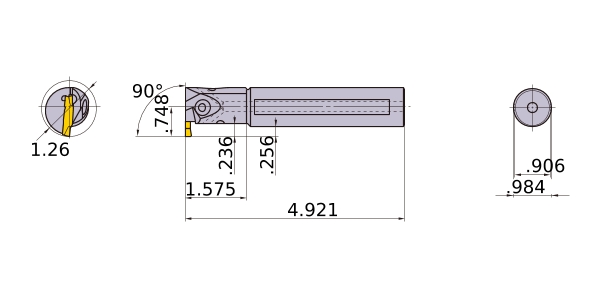

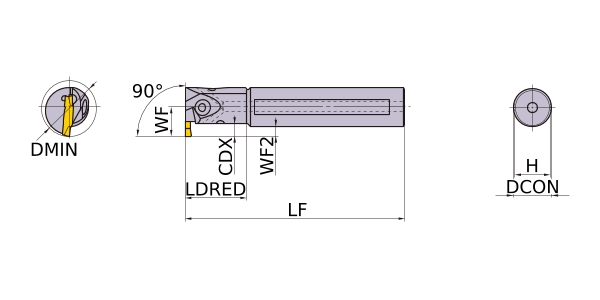

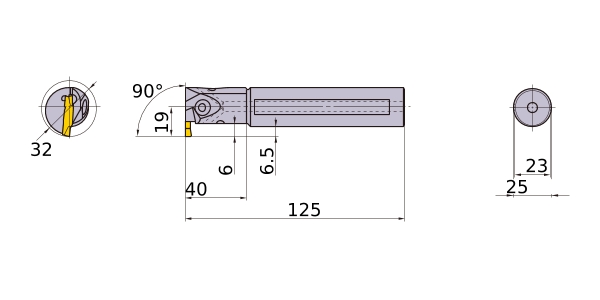

DMIN 1.26
DCON .984
LF 4.921
CDX .236
LDRED 1.575
WF .748
H .906
CW .098
WF2 .256
