Spare Parts >RBH10378A

Spare Parts

RBH10378A EDP:347581

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

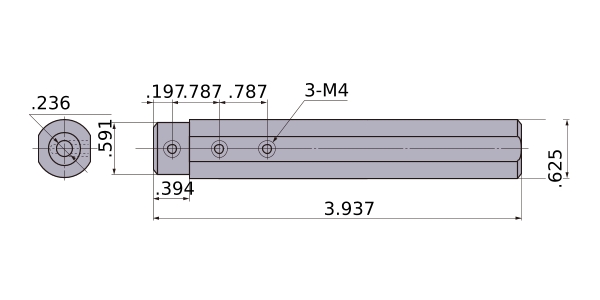

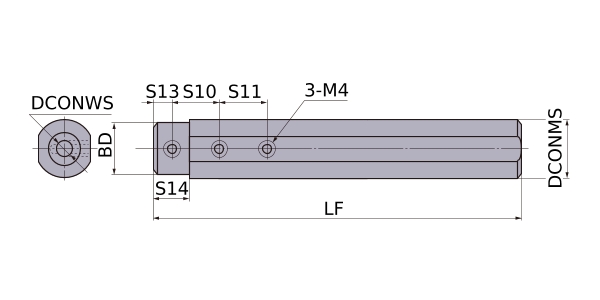

Unit of Length I
DCONWS .236
DCONMS .625
BD .591
LF 3.937
S10 .787
S11 .787
S13 .197
S14 .394
2D Model (DXF)
CAD data name Download
RBH10378A
CAD
