Spare Parts

GYALUS12Q90A-F06 EDP:503871

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

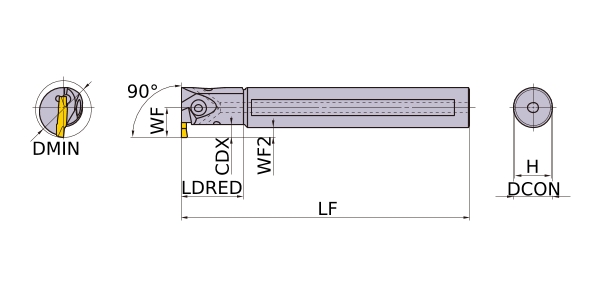

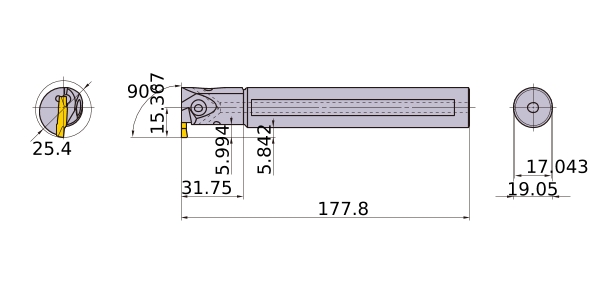

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1
DCON .75
LF 7
CDX .236
LDRED 1.25
WF .605
H .671
CW .118
WF2 .23
2D Model (DXF)
CAD data name Download
GYALUS12Q90A-F06
