Spare Parts >GYARUS12K90A-D06

Spare Parts

GYARUS12K90A-D06 EDP:503687

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

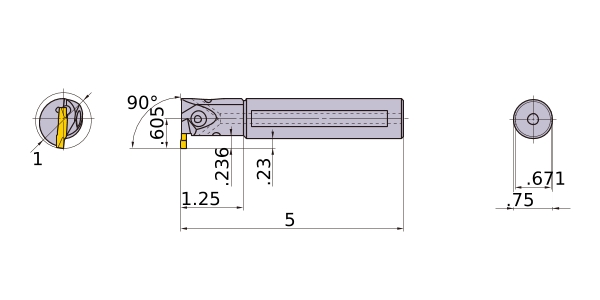

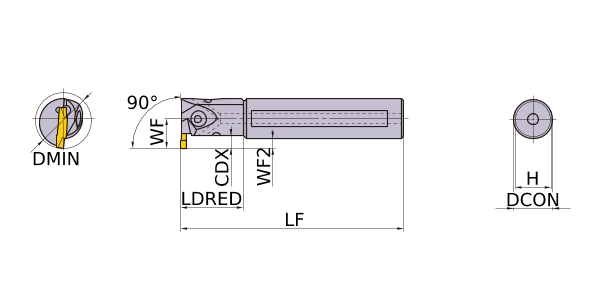

Unit of Length I
DMIN 1
DCON .75
LF 5
CDX .236
LDRED 1.25
WF .605
H .671
CW .079
WF2 .23
