Spare Parts >GYARUS12Q90A-F06

Spare Parts

GYARUS12Q90A-F06 EDP:503855

Product Information

The actual product may differ from the displayed image.

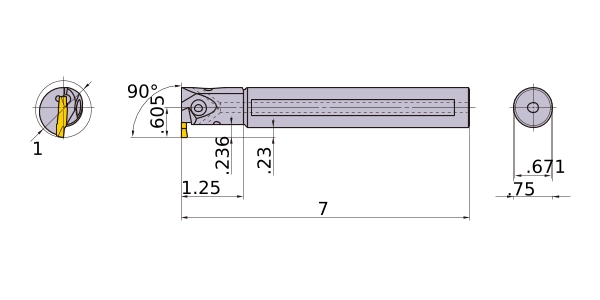

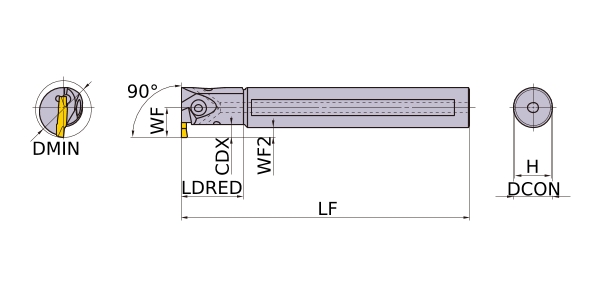

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M
DMIN 25.4
DCON 19.05
LF 177.8
CDX 5.994
LDRED 31.75
WF 15.367
H 17.043
CW 2.997
WF2 5.842
2D Model (DXF)
CAD data name Download
6F1R9F1
