Spare Parts >GYARUS16R90B-H07

Spare Parts

GYARUS16R90B-H07 EDP:503978

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

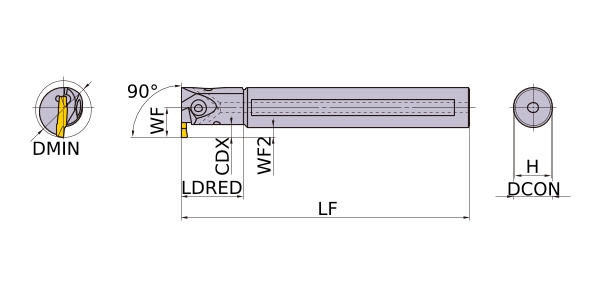

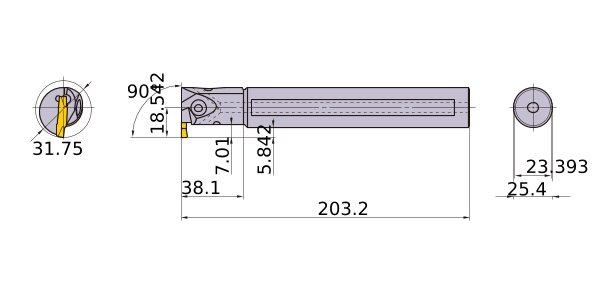

DMIN 1.25
DCON 1
LF 8
CDX .276
LDRED 1.5
WF .73
H .921
CW .187
WF2 .23
