Spare Parts >IMX12-A16N065L130C

Spare Parts

IMX12-A16N065L130C EDP:806346

Product Information

The actual product may differ from the displayed image.

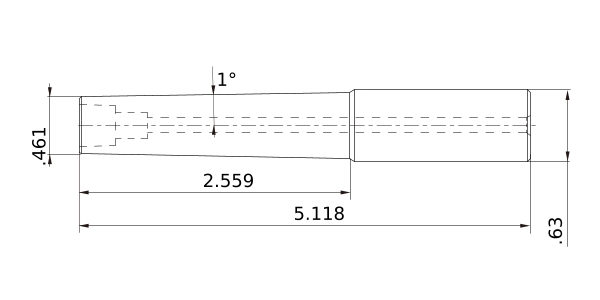

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M

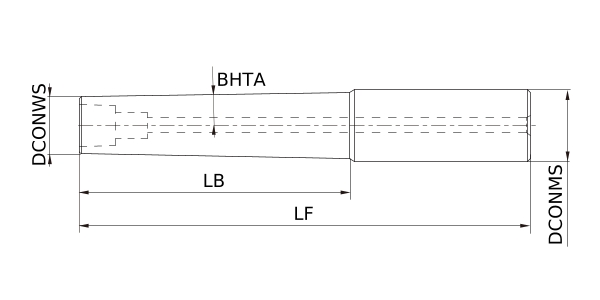

DCONWS 11.7
DCONMS 16
BHTA 1°
LF 130
LB 65
3D Detail Model (STP,STL)
CAD data name Download
IMX12-A16N065L130C
