Spare Parts >GYPRUS16D00-K25

Spare Parts

GYPRUS16D00-K25 EDP:671146

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

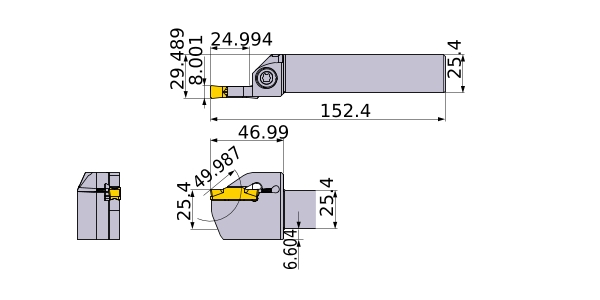

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

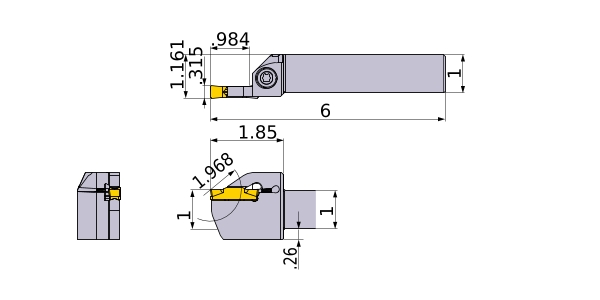

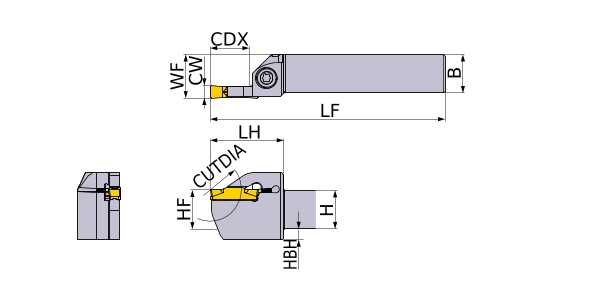

Unit of Length I
CUTDIA 1.968
B 1
LF 6
LH 1.85
CDX .984
WF 1.161
H 1
HF 1
HBH .26
CW .315
