Spare Parts >GYPLUS16D00-K25

Spare Parts

GYPLUS16D00-K25 EDP:671162

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length M

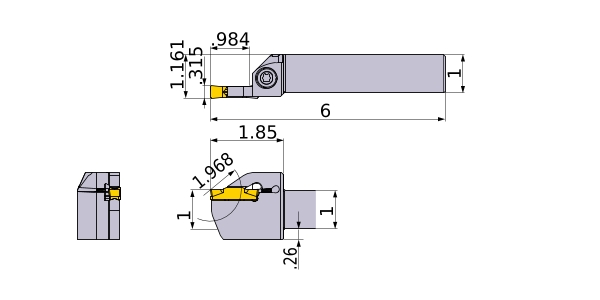

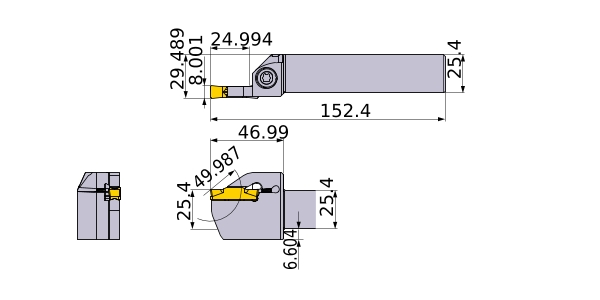

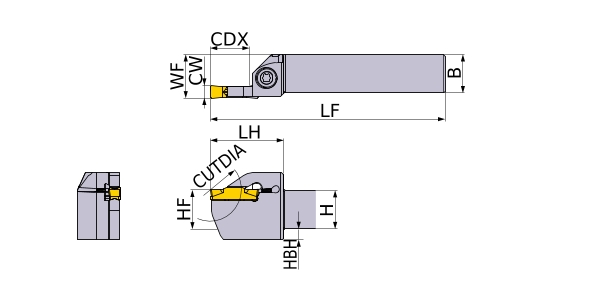

CUTDIA 49.987
B 25.4
LF 152.4
LH 46.99
CDX 24.994
WF 29.489
H 25.4
HF 25.4
HBH 6.604
CW 8.001
2D Model (DXF)
CAD data name Download
GYPLUS16D00-K25
CAD
