Spare Parts >GYSR1616JX00-D17

Spare Parts

GYSR1616JX00-D17 EDP:808982

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M

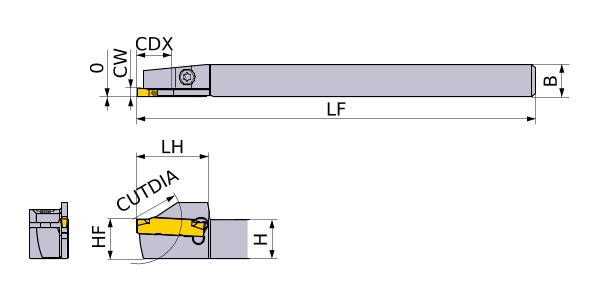

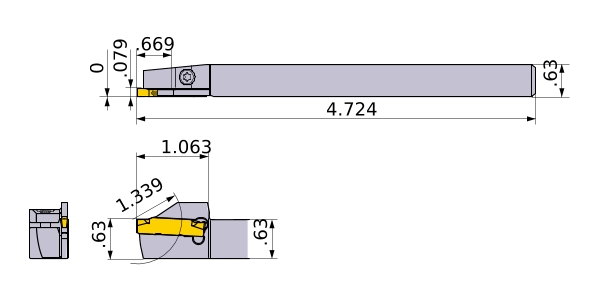

CUTDIA 34
B 16
LF 120
LH 27
CDX 17
H 16
HF 16
CW 2
