Spare Parts >GYSL1212JX00-F13

Spare Parts

GYSL1212JX00-F13 EDP:809213

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I

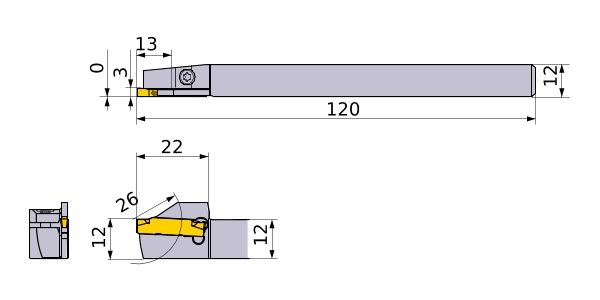

CUTDIA 1.024
B .472
LF 4.724
LH .866
CDX .512
H .472
HF .472
CW .118
2D Model (DXF)
CAD data name Download
GYSL1212JX00-F13
