Spare Parts >GYSL1616JX00-F17

Spare Parts

GYSL1616JX00-F17 EDP:809221

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I

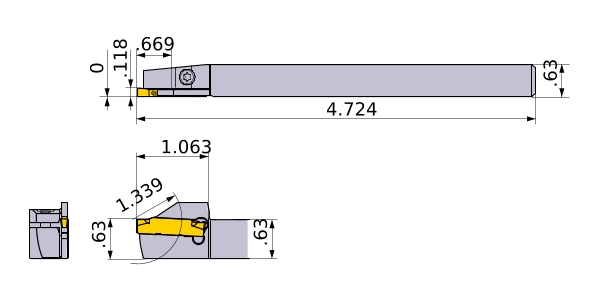

CUTDIA 1.339
B .63
LF 4.724
LH 1.063
CDX .669
H .63
HF .63
CW .118
2D Model (DXF)
CAD data name Download
GYSL1616JX00-F17
