Spare Parts >GYSRUS12B00-C17

Spare Parts

GYSRUS12B00-C17 EDP:809272

Product Information

The actual product may differ from the displayed image.

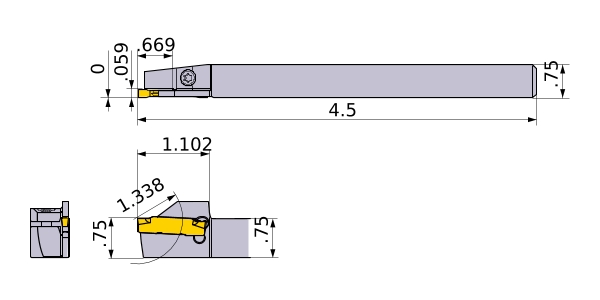

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

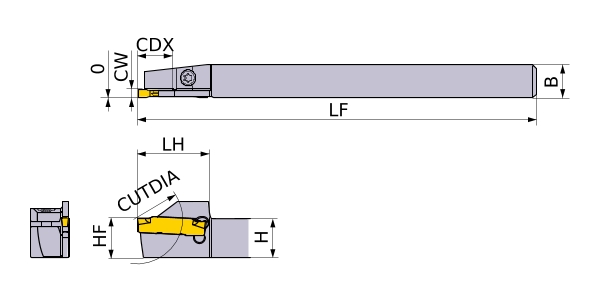

Unit of Length I
CUTDIA 1.338
B .75
LF 4.5
LH 1.102
CDX .669
H .75
HF .75
CW .059
3D Detail Model (STP,STL)
CAD data name Download
GYSRUS12B00-C17
