Spare Parts >GYSRUS06B00-D11

Spare Parts

GYSRUS06B00-D11 EDP:809281

Product Information

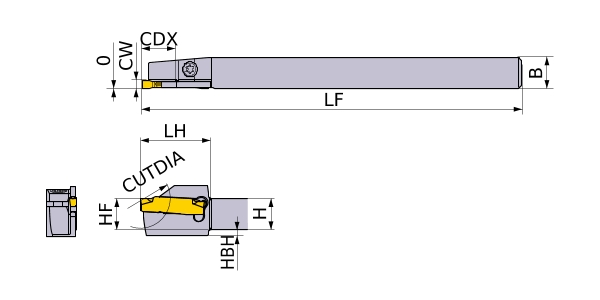

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

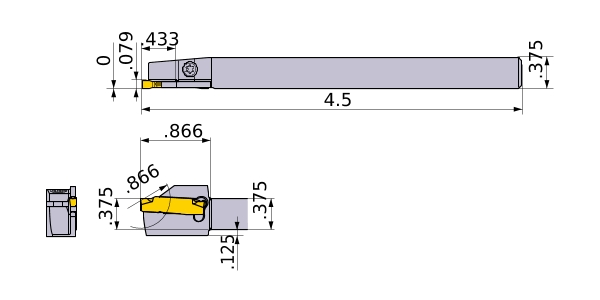

Unit of Length I
CUTDIA .866
B .375
LF 4.5
LH .866
CDX .433
H .375
HF .375
HBH .125
CW .079
2D Model (DXF)
