Spare Parts >GYSRUS08B00-D13

Spare Parts

GYSRUS08B00-D13 EDP:809299

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

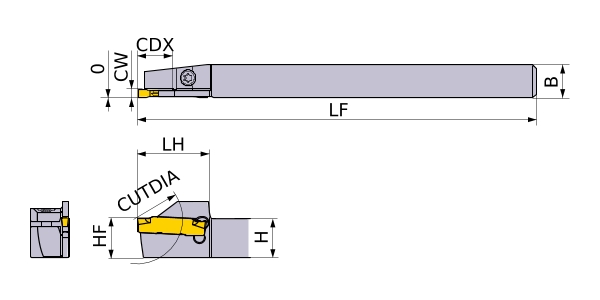

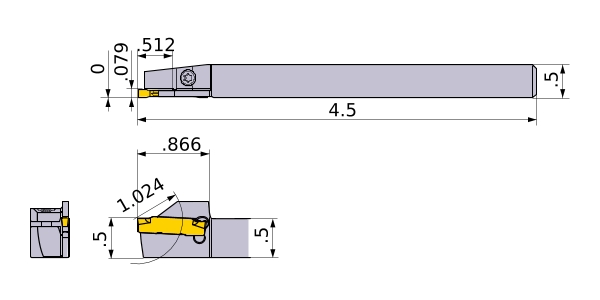

Unit of Length I
CUTDIA 1.024
B .5
LF 4.5
LH .866
CDX .512
H .5
HF .5
CW .079
2D Model (DXF)
CAD data name Download
GYSRUS08B00-D13
CAD
