Spare Parts >GYQRUS16D00-D06

Spare Parts

GYQRUS16D00-D06 EDP:821790

Product Information

The actual product may differ from the displayed image.

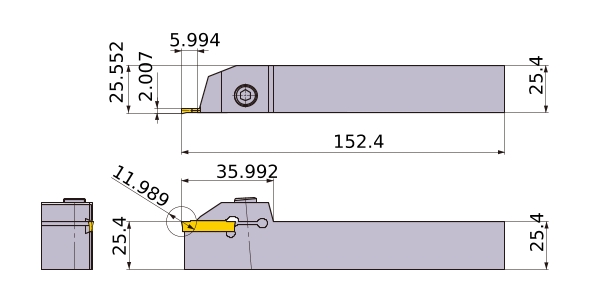

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
CUTDIA .472
B 1
LF 6
LH 1.417
CDX .236
WF 1.006
H 1
HF 1
CW .079
2D Model (DXF)
CAD data name Download
GYQRUS16D00-D06
