Mitsubishi Materials Web Catalog | Products Information | Spare Parts

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Sales unit

1

Hand

R

Stock

Unit of Length

I

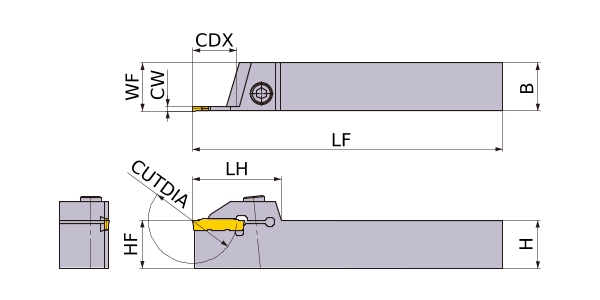

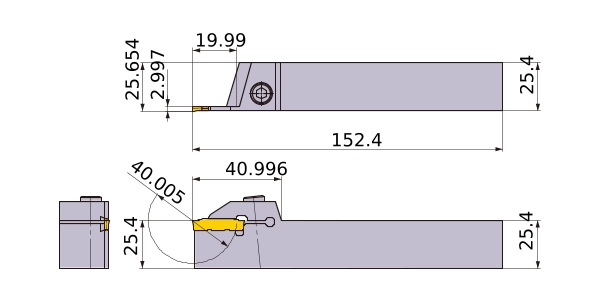

CUTDIA

1.575

B

1

LF

6

LH

1.614

CDX

.787

WF

1.01

H

1

HF

1

CW

.118

2D Model (DXF)
CAD data name	Download
