Spare Parts >GYQLUS16D00-G08

Spare Parts

GYQLUS16D00-G08 EDP:821731

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

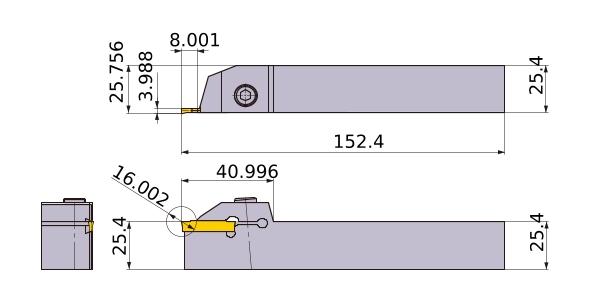

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I
CUTDIA .63
B 1
LF 6
LH 1.614
CDX .315
WF 1.014
H 1
HF 1
CW .157
