Spare Parts >GYQLUS16D00-J08

Spare Parts

GYQLUS16D00-J08 EDP:821773

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length M

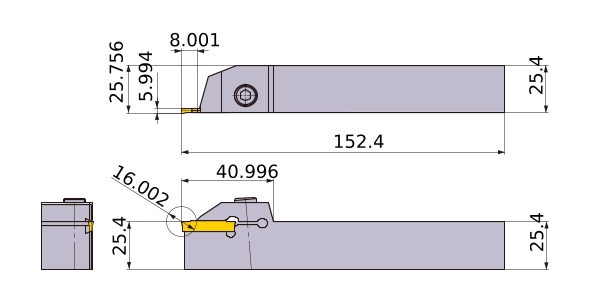

CUTDIA 16.002
B 25.4
LF 152.4
LH 40.996
CDX 8.001
WF 25.756
H 25.4
HF 25.4
CW 5.994
2D Model (DXF)
CAD data name Download
GYQLUS16D00-J08
CAD
