Spare Parts >GYSR1010JX00-C08

Spare Parts

GYSR1010JX00-C08 EDP:10630105

Product Information

The actual product may differ from the displayed image.

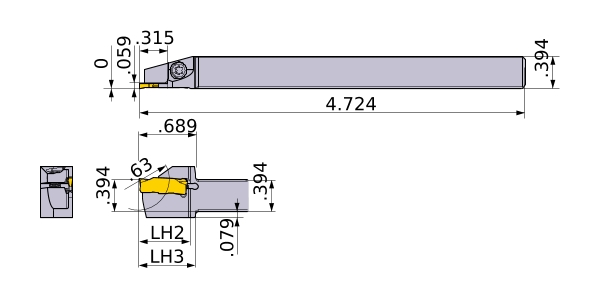

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M
CUTDIA 16
B 10
LF 120
LH 17.5
CDX 8
H 10
HF 10
HBH 2
CW 1.5
