Threading

MMTE_INCH


MMTER-083 EDP:541907

Product Information

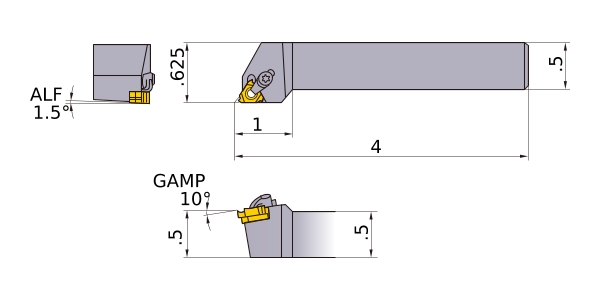

  • Available with a wiper cutting edge to provide a precise thread geometry.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI MMTER083A
Sales unit 1
Hand R
Stock
Unit of Length I
B .5
LF 4
LH 1
WF .625
H .5
HF .5
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
MMTER-083
CAD
