Turning Insert >BTAT603501L-B
BTAT603501L-B EDP:265308
The actual product may differ from the displayed image.

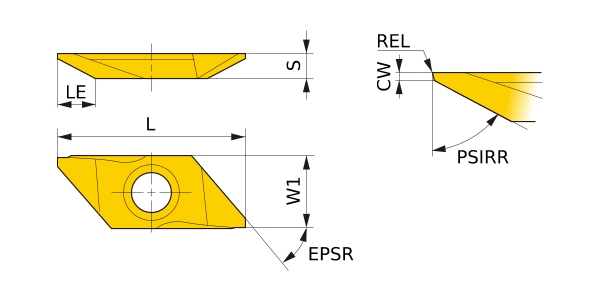

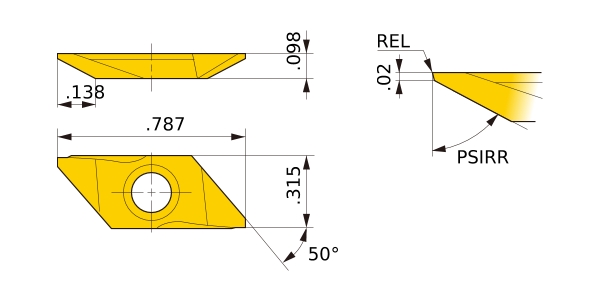

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | BTAT603501L-B |
| Sales unit | 5 |
| Hand | L |
| Stock |
|
| Unit of Length | M |
| EPSR | 50° |
| PSIRL | 60° |
| LE | 3.5 |
| L | 20 |
| W1 | 8 |
| CW | 0.5 |
| S | 2.5 |
| CF | 0 |
| RER | 0.1 |
| Breaker | B |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
