Turning Insert >CCET21.50.2RSR

Turning Insert

CCET21.50.2RSR EDP:272495

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number CCET060201R-SR
Sales unit 10
Hand R
Stock
Unit of Length I

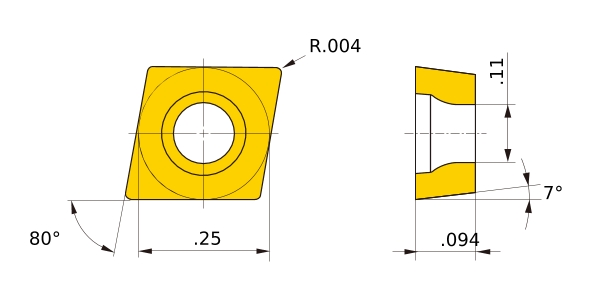

D1 .11
IC .25
EPSR 80°
GAN 30°
AN 7°
LBB .087
LE .248
S .094
RE .004
Breaker R-SR
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
CC060201R
