Turning Insert >CPGT2.51.50.5

Turning Insert

CPGT2.51.50.5 EDP:296147

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
Order Number CPGT080202
Sales unit 1
Hand N
Stock
Unit of Length I

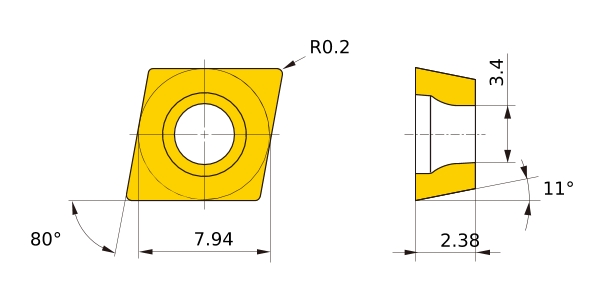

D1 .134
IC .313
EPSR 80°
AN 11°
LE .146
S .094
RE .008
Breaker standard
Classification of Grades
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
CP080202N
CAD
