Turning Insert >DCET21.5V0RSN

Turning Insert

DCET21.5V0RSN EDP:272778

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number DCET070200R-SN
Sales unit 10
Hand R
Stock
Unit of Length I

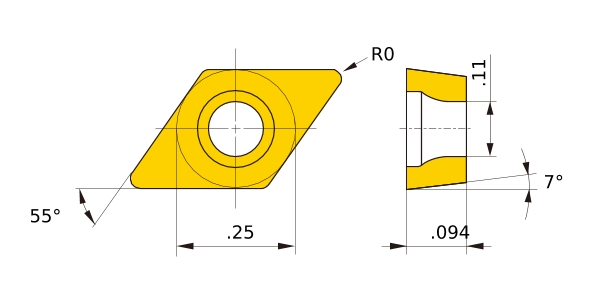

D1 .11
IC .25
EPSR 55°
GAN 20°
AN 7°
LBB .039
LE .303
S .094
RE 0
Breaker R-SN
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
DC070200R
CAD
