Turning Insert >DCET32.51LSR

Turning Insert

DCET32.51LSR EDP:273017

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number DCET11T304L-SR
Sales unit 10
Hand L
Stock
Unit of Length I

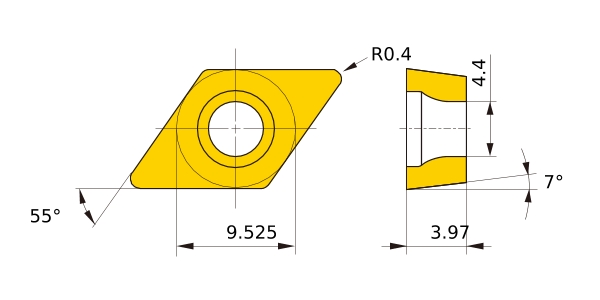

D1 .173
IC .375
EPSR 55°
GAN 30°
AN 7°
LBB .146
LE .433
S .156
RE .016
Breaker L-SR
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
DC11T304L
