Turning Insert >DCET32.5V3LSN

Turning Insert

DCET32.5V3LSN EDP:268795

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number DCET11T3V3L-SN
Sales unit 10
Hand L
Stock
Unit of Length I

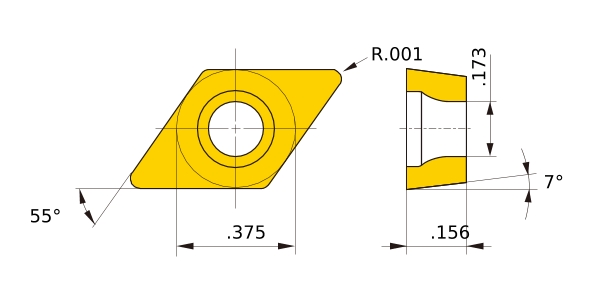

D1 .1732
IC .375
EPSR 55°
GAN 20°
AN 7°
LBB .0591
LE .4567
S .1563
RE .0012
Breaker L-SN
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
DC11T3V3L
