Turning Insert >DCGT11T304L-F

Turning Insert

DCGT11T304L-F EDP:294299

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI DCGT32.51LF
Sales unit 10
Hand L
Stock
Unit of Length M

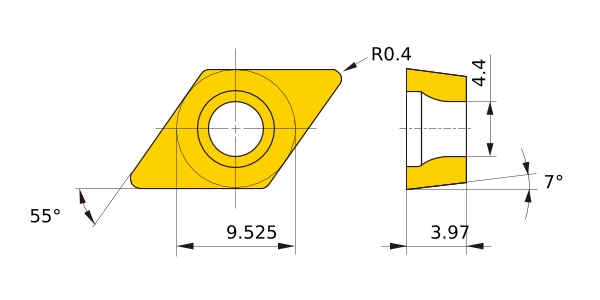

D1 4.4
IC 9.525
B7 20
EPSR 55°
GAN 14°
AN 7°
LBB 1
LE 3.2
S 3.97
RE 0.4
Breaker L-F
Classification of Grades
Coated・Cermet AP25N
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
3D Detail Model (STP,STL)
CAD data name Download
DC11T304L
CAD
