Turning Insert >DEGX430.5R

Turning Insert

DEGX430.5R EDP:101569

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number DEGX150402R
Sales unit 10
Hand R
Stock
Unit of Length I

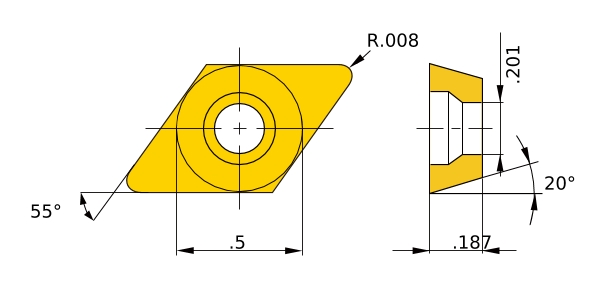

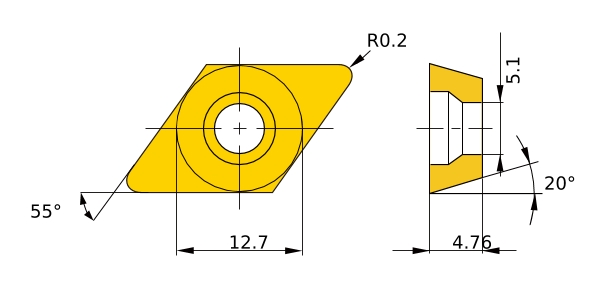

D1 .201
IC .5
EPSR 55°
GAN 20°
AN 20°
LBB .11
LE .598
S .187
RE .008
Breaker R
2D Model (DXF)
CAD data name Download
DE150402R
CAD
