Turning Insert >DEGX150404R

Turning Insert

DEGX150404R EDP:101573

Product Information

The actual product may differ from the displayed image.

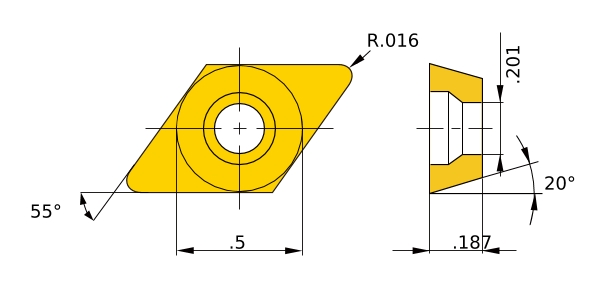

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
ANSI DEGX431R
Sales unit 10
Hand R
Stock
Unit of Length M
D1 5.1
IC 12.7
EPSR 55°
GAN 20°
AN 20°
LBB 2.8
LE 14.9
S 4.76
RE 0.4
Breaker R
3D Detail Model (STP,STL)
CAD data name Download
DE150404R
CAD
