Turning Insert >NP-CCMW03S102

Turning Insert

NP-CCMW03S102 EDP:296278

Product Information

The actual product may differ from the displayed image.

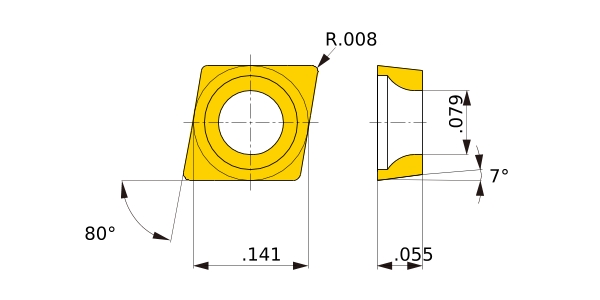

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
ANSI NP-CCMW03S102
Sales unit 1
Hand N
Stock
Unit of Length I
D1 .079
IC .141
EPSR 80°
AN 7°
LE .043
S .055
RE .008
Breaker flat_top
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Internal Holder
