Turning Insert >NP-TPMH1.51.50.5LF

Turning Insert

NP-TPMH1.51.50.5LF EDP:296551

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
Order Number NP-TPMH080202L-F
Sales unit 1
Hand L
Stock
Unit of Length I

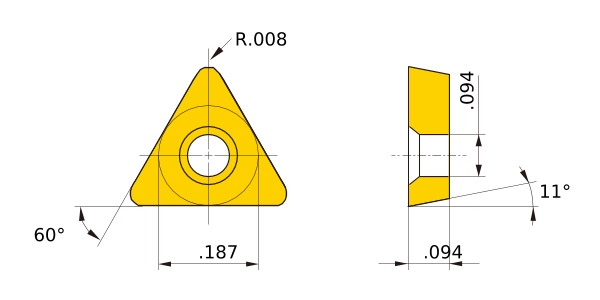

D1 .094
IC .187
EPSR 60°
AN 11°
LE .059
S .094
RE .008
Breaker L-F
2D Model (DXF)
CAD data name Download
TP080202L
CAD
