Turning Insert >SNGG431R

Turning Insert

SNGG431R EDP:485976

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX3035
Order Number SNGG120404R
Sales unit 10
Hand R
Stock
Unit of Length I

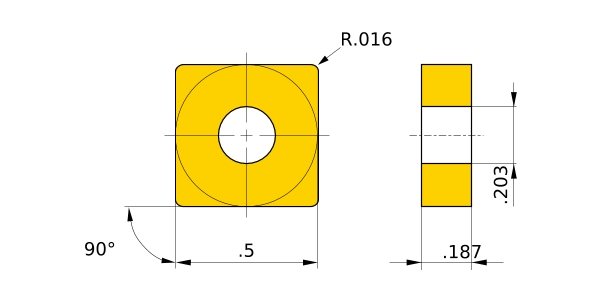

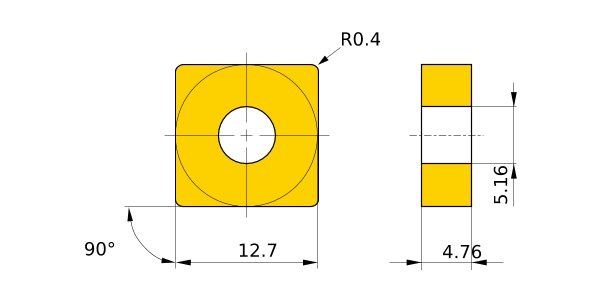

D1 .203
IC .5
EPSR 90°
GAN 15°
LBB .091
LE .146
S .187
RE .016
Breaker R
Classification of Grades
Coated・Cermet MP3025
Non-coated・Cermet NX2525
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
SN120404R
CAD
