Turning Insert >SNMG431FH

Turning Insert

SNMG431FH EDP:277915

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX2525
Order Number SNMG120404-FH
Sales unit 10
Hand N
Stock
Unit of Length I

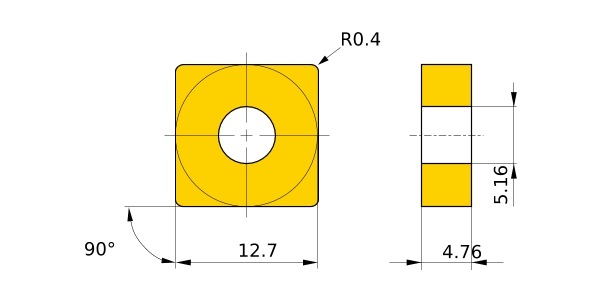

D1 .203
IC .5
EPSR 90°
S .187
RE .016
Breaker FH
Classification of Grades
Coated・Carbide MC6115
Coated・Carbide MC6125
Coated・Cermet MP3025
2D Model (DXF)
CAD data name Download
SN120404N
CAD
