Turning Insert >TCMT2.521

Turning Insert

TCMT2.521 EDP:106706

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade US735
Order Number TCMT130304
Sales unit 10
Hand N
Stock
Unit of Length I

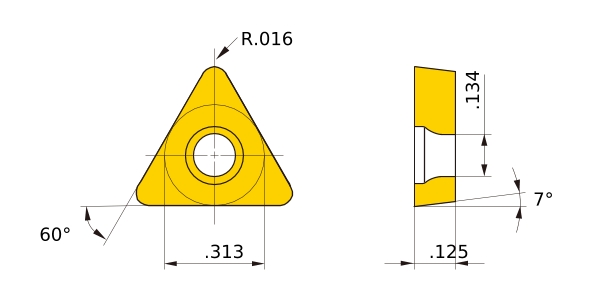

D1 .134
IC .313
EPSR 60°
AN 7°
S .125
RE .016
Breaker standard
Classification of Grades
Coated・Cermet MP3025
Non-coated・Cermet NX3035
