Turning Insert >TEGX320.5R

Turning Insert

TEGX320.5R EDP:412785

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
Order Number TEGX160302R
Sales unit 1
Hand R
Stock
Unit of Length I

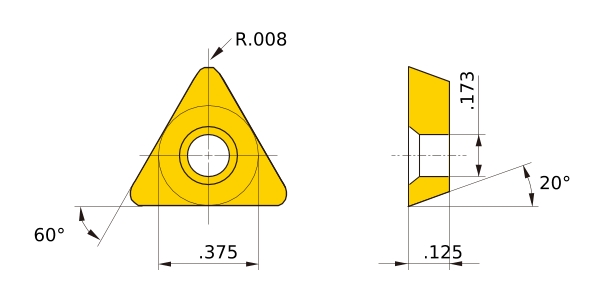

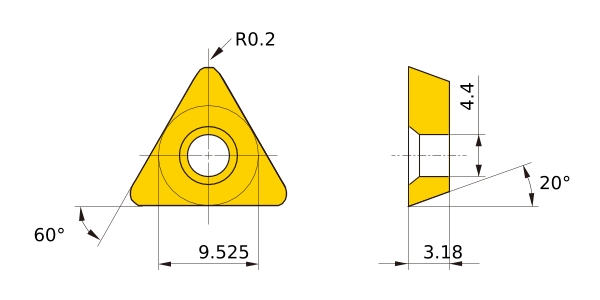

D1 .173
IC .375
EPSR 60°
GAN 20°
AN 20°
LBB .079
LE .15
S .125
RE .008
Breaker R
Classification of Grades
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
TE160302R
