Turning Insert >TEGX321L

Turning Insert

TEGX321L EDP:106854

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number TEGX160304L
Sales unit 10
Hand L
Stock
Unit of Length I

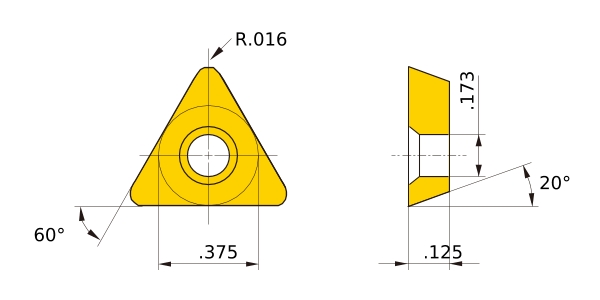

D1 .173
IC .375
EPSR 60°
GAN 20°
AN 20°
LBB .079
LE .236
S .125
RE .016
Breaker L
Classification of Grades
CBN・PCD MD220
2D Model (DXF)
CAD data name Download
TE160304L
CAD
