Turning Insert >TNGG220404L

Turning Insert

TNGG220404L EDP:438889

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX3035
ANSI TNGG431L
Sales unit 10
Hand L
Stock
Unit of Length M

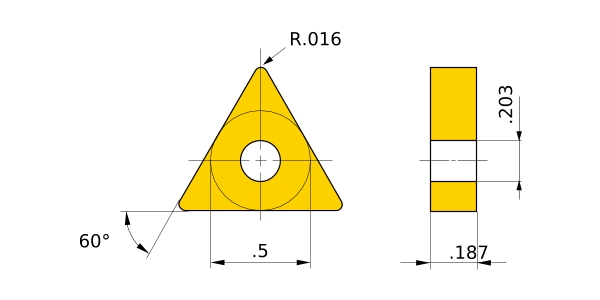

D1 5.16
IC 12.7
EPSR 60°
GAN 15°
LBB 2.8
LE 9.4
S 4.76
RE 0.4
Breaker L
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
TN220404L
CAD
