Turning Insert >TNMG543MA

Turning Insert

TNMG543MA EDP:107932

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade US735
Order Number TNMG270612-MA
Sales unit 10
Hand N
Stock
Unit of Length I

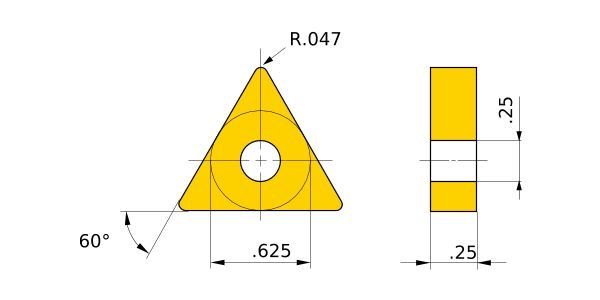

D1 .25
IC .625
EPSR 60°
S .25
RE .047
Breaker MA
Classification of Grades
Coated・Carbide MC6115
Coated・Carbide MC6125
Coated・Carbide MC6135
