Turning Insert >TPGH1.51.51LFS

Turning Insert

TPGH1.51.51LFS EDP:294803

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number TPGH080204L-FS
Sales unit 10
Hand L
Stock
Unit of Length I

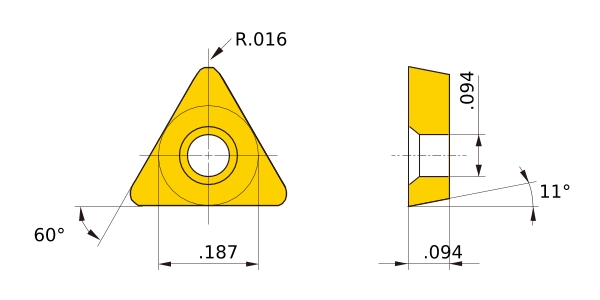

D1 .094
IC .187
B7 20
EPSR 60°
GAN 15°
AN 11°
LBB .035
LE .114
S .094
RE .016
Breaker L-FS
Classification of Grades
Coated・Carbide VP15TF
Coated・Cermet MP3025
Coated・Cermet AP25N
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
TP080204L
CAD
