Turning Insert

TPG222 EDP:108356

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UP20M
Order Number TPGN110308
Sales unit 10
Hand N
Stock

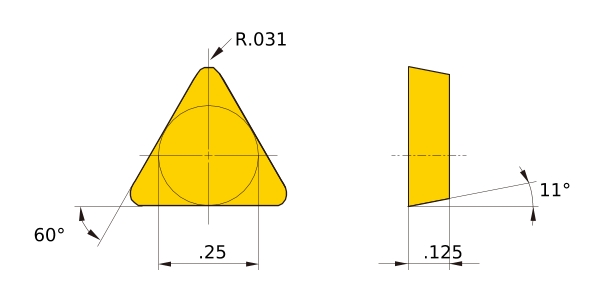

Unit of Length I
IC .25
EPSR 60°
AN 11°
S .125
RE .031
Breaker flat_top
Classification of Grades
Non-coated・Carbide HTi10
CBN・PCD MD220
3D Detail Model (STP,STL)
CAD data name Download
TP110308N
