Turning Insert

TPG322 EDP:187485

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
Order Number TPGN160308
Sales unit 1
Hand N
Stock
Unit of Length I

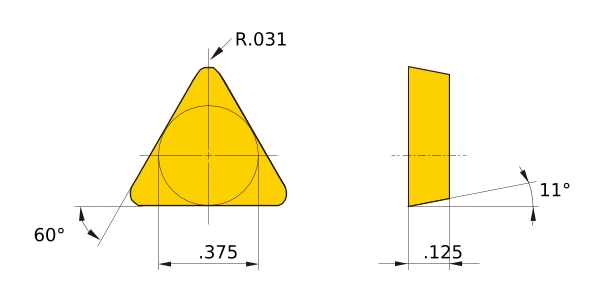

IC .375
EPSR 60°
AN 11°
LE .102
S .125
RE .031
Breaker flat_top
Classification of Grades
Coated・Carbide UP20M
Non-coated・Cermet NX2525
Non-coated・Carbide HTi05T
Non-coated・Carbide HTi10
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
TP160308N
CAD
