Turning Insert

TPG431 EDP:108418

Product Information

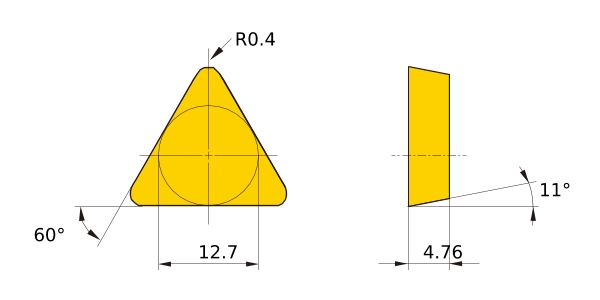

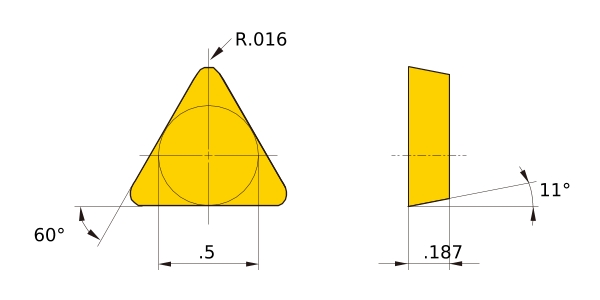

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UP20M
Order Number TPGN220404
Sales unit 10
Hand N
Stock
Unit of Length I
IC .5
EPSR 60°
AN 11°
S .187
RE .016
Breaker flat_top
Classification of Grades
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
TP220404N
CAD
