Turning Insert >TPGX220.5

Turning Insert

TPGX220.5 EDP:108191

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade PCD
Grade MD220
Order Number TPGX110302
Sales unit 1
Hand N
Stock
Unit of Length I

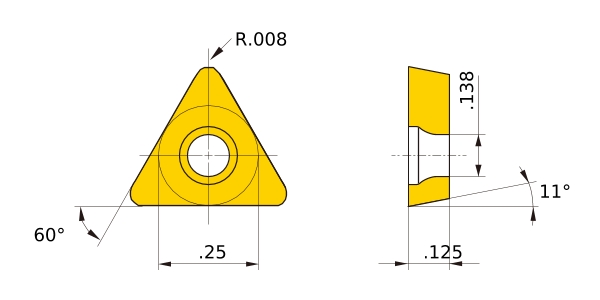

D1 .138
IC .25
EPSR 60°
AN 11°
LE .106
S .125
RE .008
Breaker flat_top
Classification of Grades
Non-coated・Carbide HTi10
