Turning Insert

TPMN221 EDP:108480

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UTi20T
Order Number TPMN110304
Sales unit 10
Hand N
Stock
Unit of Length I

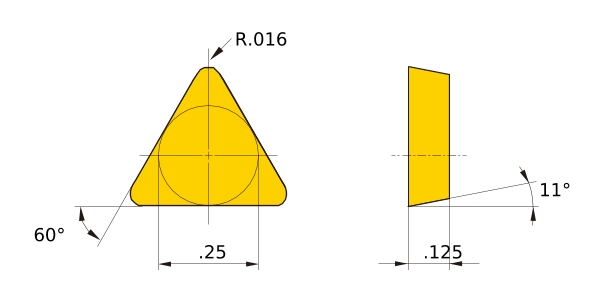

IC .25
EPSR 60°
AN 11°
S .125
RE .016
Breaker flat_top
Classification of Grades
Coated・Carbide MC5005
Coated・Carbide MC5015
Coated・Carbide MC5105
Coated・Carbide MC5115
Coated・Carbide MC5125
Coated・Carbide MC6115
Coated・Carbide UP20M
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
TP110304N
CAD
