Turning Insert >VBET22V3RSN

Turning Insert

VBET22V3RSN EDP:270502

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number VBET1103V3R-SN
Sales unit 10
Hand R
Stock
Unit of Length I

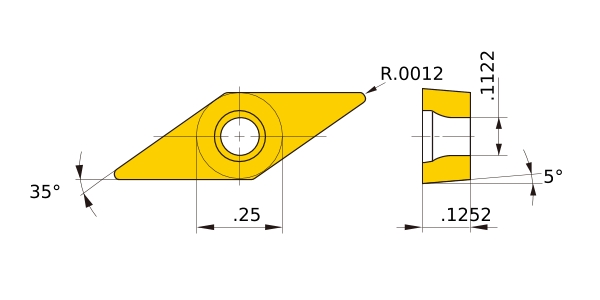

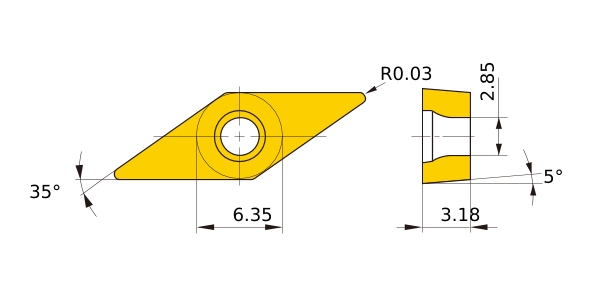

D1 .1122
IC .25
EPSR 35°
GAN 20°
AN 5°
LBB .0394
LE .4331
S .1252
RE .0012
Breaker R-SN
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
VB1103V3R
CAD
