Turning Insert >VDGX160302R

Turning Insert

VDGX160302R EDP:108932

Product Information

The actual product may differ from the displayed image.

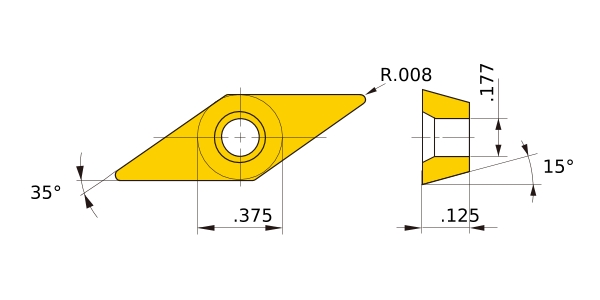

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade HTi10
ANSI VDGX320.5R
Sales unit 10
Hand R
Stock
Unit of Length M

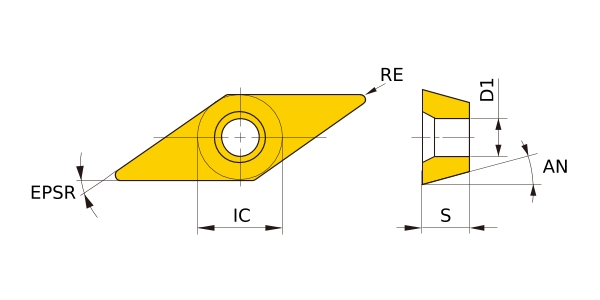

D1 4.5
IC 9.525
EPSR 35°
GAN 25°
AN 15°
LBB 2
LE 6
S 3.18
RE 0.2
Breaker R
2D Model (DXF)
CAD data name Download
VD160302R
CAD

3D Detail Model (STP,STL)
CAD data name Download
VD160302R
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
