Turning Insert >VNGA160404

Turning Insert

VNGA160404 EDP:108937

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade HTi10
ANSI VNGA331
Sales unit 10
Hand N
Stock
Unit of Length M

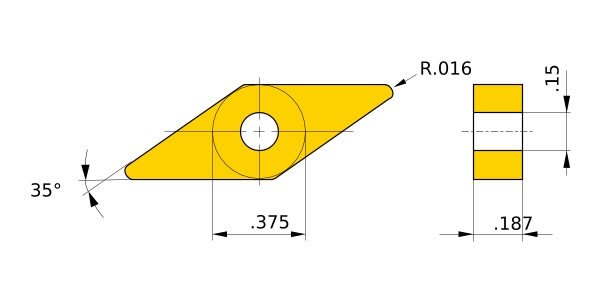

D1 3.81
IC 9.525
EPSR 35°
S 4.76
RE 0.4
Breaker flat_top
Classification of Grades
Non-coated・Carbide HTi05T
CBN・PCD MD220
2D Model (DXF)
CAD data name Download
VN160404N
CAD

3D Detail Model (STP,STL)
CAD data name Download
VN160404N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
